Narrow Pixel Pitch Control Room LED Display with 1.25mm Pixel Pitch 600cd/m² Brightness and Front Maintenance

Pixel Pitch : 1.25mm

LED Packaging : SMD

Module Dimension(W×H) : 300mm×168.75mm

Module Resolution(W×H) : 240×135

Pixel Density : 640000 pixels/m²

Maintenance : Front

Brightness : 600cd/m²

Contrast Ratio : ≥3000:1

Viewing Angle(H/V) : 160°/160°

Gray Scale : 13~16bit (Adjustable)

Refresh Rate : 7680Hz

Frame Rate : 50/60Hz

Brightness Level : 0~100% (Manual/Auto/Timing)

Color Temperature : 3000~9500K (Adjustable)

Input Voltage : 100-240V~, 50/60Hz

Max. Power Consumption : 500W/m²

Avg. Power Consumption : 167W/m²

Working Temperature : -10℃~+45℃

Contact Now

Narrow Pixel Pitch Control Room LED Display with 1.25mm Pixel Pitch 600cd/m² Brightness and Front Maintenance

Narrow Pixel Pitch Outdoor LED Display

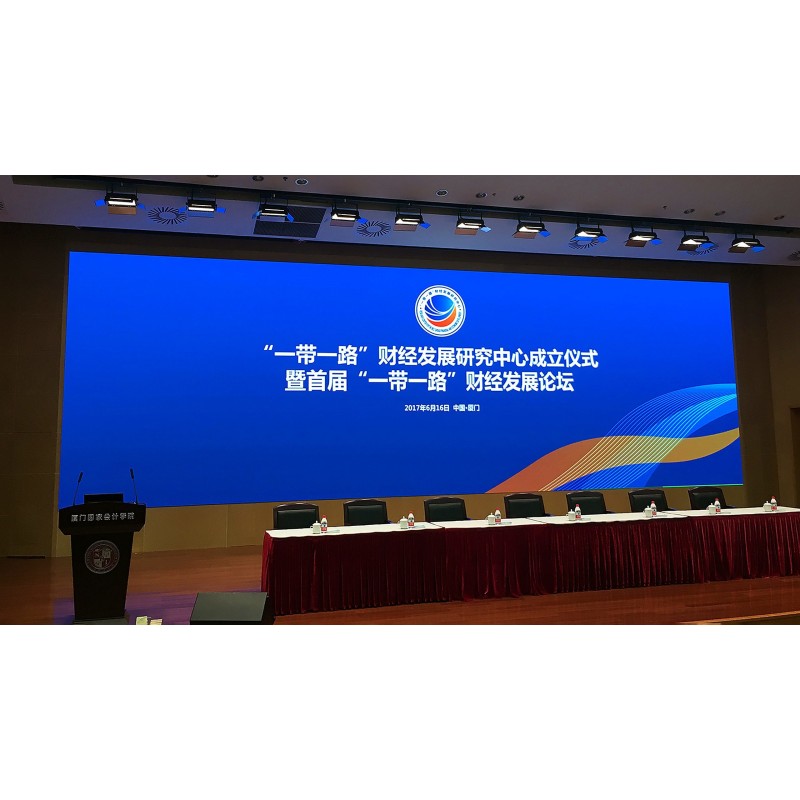

Advanced LED Display Solutions for Control Rooms

Seamless, High-Definition Visuals for Critical Operations.

Engineered for the demanding environment of control rooms, our LED display technology offers unparalleled clarity, stability, and operational efficiency. Experience seamless, high-definition visuals powered by narrow pixel pitch technology, ensuring point-to-point signal matching and stable output quality. Our displays are optimized for low brightness and high grayscale, providing high-fidelity visuals for complex graphics and video content, even during extended viewing periods, without eye strain. Enjoy ultra-quiet operation with superior heat dissipation, ensuring reliable 7x24 hour performance with a long lifespan and easy maintenance.

Key Benefits:

Seamless, high-definition display with narrow pixel pitch.
Ultra-quiet operation and excellent heat dissipation.
Stable signal transmission for 7x24 hour trouble-free operation.
Real-time seamless signal switching and multi-signal access.
Convenient control with customizable layouts and dual system support.

Ideal for: Control Centers, Security Operations, Traffic Management, Broadcast Studios, Command Centers, and other mission-critical environments.

Technical Specifications

Model	P0.9375	P1.25	P1.5625	P1.875
Pixel Pitch(mm)	0.9375	1.25	1.5625	1.875
LED Configuration	Mini 4in1	SMD1010	SMD1212	SMD1515
Module Resolution(dot) (H x V)	320 x 180	240 x 135	192 x 108	160 x 90
Module Size(mm) (H x V)	300x168.75
Module Maintenance Method	Front
Cabinet Resolution(dot) (H x V)	640 x 360	480 x 270	384 x 216	320 x 180
Cabinet Size(mm) (H x V)	600x337.5x75
Cabinet Material	Aluminum Die-cast
Cabinet Weight (kg/pcs)	6.5kg/pcs
IP Standard (Front / Back)	IP20
Density(Pixels / sqm)	1137777	640000	409600	284089
Brightness Range(nits)	≥600	≥600	≥600	≥600
Brightness Adjustment(Levels)	256
Best View Distance(m)	0.9	1.2	1.5	1.8
Working voltage	110V / 220V
Grey Scale(bits)	13-16
Refresh Rate(Hz)	1920-3840
Frame Rate(Hz)	50 / 60
View Angle(H/V)	140/140
Max. Consumption (w/sqm)	680	680	680	680
Ave. Consumption(w/sqm)	220	220	220	220
Working Humidity	10% - 95%	10% - 95%	10% - 95%	10% - 95%
Working Temperature	-20℃ ~ 55℃
Signal Available	DVI,HDMI,SDI,DP and so on
Life Span(Hours)	100000
Running Files	Text , Animation, Image, Video and so on
